Large Fingers Wiring Duct

Filter by:

  Model Number Short Description Sale Price QTY Stock Status Lead Time Specs
(image for) Wiring Duct Large Fingers

115LG

Wiring Duct Large Fingers

Wiring Duct, W: 1.00 in. X H: 1.50 in. X L: 6.57 feet, large fingers, gray, 1 box of 12 pieces, cover included. (10450022)

$276.00

Contact UsContact Us
(image for) Wiring Duct Large Fingers

12LG

Wiring Duct Large Fingers

Wiring Duct, W: 0.984252 in. X H: 1.9685in. X L: 6.57 feet, large fingers, gray, 1 box of 12 pieces, cover included. 10450023Y

$329.00

Contact UsContact Us
(image for) Wiring Duct Large Fingers

13LG

Wiring Duct Large Fingers

Wiring Duct, W: 1.00 in. X H: 3.00 in. X L: 6.57 feet, large fingers, gray, 1 box of 8 pieces, cover included.  (10450024)

$224.00

Contact UsContact Us
(image for) Wiring Duct Large Fingers

1515LG

Wiring Duct Large Fingers

Wiring Duct, W: 1.50 in. X H: 1.50 in. X L: 6.57 feet, large fingers, gray, 1 box of 12 pieces, cover included. (10450032)

$322.00

Contact UsContact Us
(image for) Wiring Duct Large Fingers

152LG

Wiring Duct Large Fingers

Wiring Duct, W: 1.50 in. X H: 2.00 in. X L: 6.57 feet, large fingers, gray, 1 box of 8 pieces, cover included. (10450033)

$260.00

Contact UsContact Us
(image for) Wiring Duct Large Fingers

153LG

Wiring Duct Large Fingers

Wiring Duct, W: 1.50 in. X H: 3.00 in. X L: 6.57 feet, large fingers, gray, 1 box of 8 pieces, cover included.  (10450034)

$265.00

Contact UsContact Us
(image for) Wiring Duct Large Fingers

215LG

Wiring Duct Large Fingers

Wiring Duct, W: 2.00 in. X H: 1.50 in. X L: 6.57 feet, large fingers, gray, 1 box of 8 pieces, cover included.  (10450052)

$232.00

Contact UsContact Us
(image for) Wiring Duct Large Fingers

22LG

Wiring Duct Large Fingers

Wiring Duct, W: 2.00 in. X H: 2.00 in. X L: 6.57 feet, large fingers, gray, 1 box of 8 pieces, cover included.  (10450053)

$266.00

Contact UsContact Us
(image for) Wiring Duct Large Fingers

23LG

Wiring Duct Large Fingers

Wiring Duct, W: 2.00 in. X H: 3.00 in. X L: 6.57 feet, large fingers, gray, 1 box of 8 pieces, cover included.  (10450054)

$273.00

Available Now
(image for) Wiring Duct Large Fingers

24LG

Wiring Duct Large Fingers

Wiring Duct, W: 2.00 in. X H: 4.00 in. X L: 6.57 feet, large fingers, gray, 1 box of 4 pieces, cover included.  (10450055)

$176.00

Contact UsContact Us

The Panel building market has very specific needs. Betaduct is a unique cable management system developed specifically for use within cabinets and control panels. Select large or narrow fingers depending on the application. Available in a number of sizes and colors, manufactured in standard PVC material.

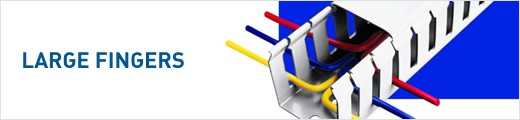

Large fingers are used where there are several medium to large size wires. The larger fingers will provide additional cable support.

Features

LID RETENTION
Friction bead on wider trunking provides excellent lid retention to combat vibration

CABLE RETENTION
Wiring duct design allows cables to be retained during installation, making routing and cable termination a simple process

BREAK-OUT
Fingers can be removed easily without the use of cutting tools

EASY INSTALLATION
Base slots are to DIN 43659, providing maximum flexibility for easy installation

UL, CSA, CE
