Dualcon Signal Conditioner

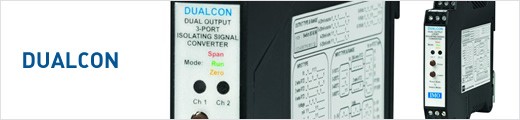

Isolating Signal Converter 2 outputs DUALCON

The new DUALCON Isolating Signal Converter can accept a wide range of inputs including 4-20mA, thermocouple, RTD and voltage signals. The units produce two high level DC outputs of either voltage or current.

• Universal configurable input - user selectable
• 2 configurable Outputs - user selectable
• Full 3-Port Isolation
• Wide range AC or DC Supply
• Isolated Transmitter Supply
• Very High Accuracy, Low Cost
• Only 17.5mm Wide on DIN rail

Full 3 port isolation is standard as is an isolated transmitter supply which can be used to power any standard 2-wire 4-20mA transmitter. The input type and range can be user selected using simple DIL switches inside the unit. All RTD and thermocouple inputs can be fully linearised. Non-interactive zero and span controls make adjustment of the unit, quick and simple. Other features include optional inversion of the input signal, on either one or both of the outputs.

The unit is supplied with two power supply options either wide ranging ac or dc. The ac version operates from any supply from 90 to 264VAC and the dc version operates from 18 - 32VAC and 16 - 36VDC.
