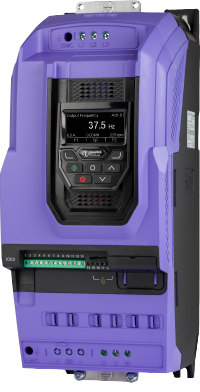

Product Description
Input Ratings
Supply Voltage 380-480 V
Input Phases 3
Supply Current Continuous 52.4 A
Supply Fuse or MCB (Type B) 63 A
Output Ratings
Motor Output Rating 22 kW (30 HP)
Output Voltage 0 – Supply Voltage
Output Current 46 A
Cable Information
Max Supply Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Size 16 mm² (0.02 sq in)
Max Motor Cable Length 100 m (328 ft)
Factory Build Options
EMC Filter Internal EMC
Brake Transistor Internal
Enclosure IP20
Display TFT Display
PCB Coating Standard
Drive Dimensionsi
Size 4
Height 418 mm (16.46 in)
Width 172 mm (6.77 in)
Depth 240 mm (9.45 in)
Weight 9.2 kg (20.28 lbs)
Fixings 4 x M8
Packaged Dimensionsi
Height 340 mm (13.39 in)
Width 280 mm (11.02 in)
Depth 560 mm (22.05 in)
Weight 11.2 kg (24.69 lbs)
- Technical Info
- Specifications
No technical information is available for this product. If you have any questions on this product, please contact us for expert assistance.
