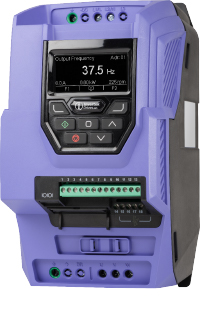

ODP-2-34100-3HF42-MN

Input Ratings Supply Voltage 380-480 V Input Phases 3 Supply Current Continuous 21 A Supply Fuse or MCB (Type B) 25 A Output Ratings Motor Output Rating 7.5 kW (10 HP) Output Voltage 0 – Supply Voltage Output Current 18 A Cable Information Max Supply Cable Size 8 mm² (0.01 sq in) Max Motor Cable Size 8 mm² (0.01 sq in) Max Motor Cable Length 100 m (328 ft) Factory Build Options EMC Filter Internal EMC Brake Transistor Internal Enclosure IP20 Display TFT Display PCB Coating Standard Drive Dimensionsi Size 3 Height 261 mm (10.28 in) Width 131 mm (5.16 in) Depth 205 mm (8.07 in) Weight 3.5 kg (7.72 lbs) Fixings 4 x M4 Packaged Dimensionsi Height 325 mm (12.8 in) Width 165 mm (6.5 in) Depth 260 mm (10.24 in) Weight 3.7 kg (8.16 lbs)
