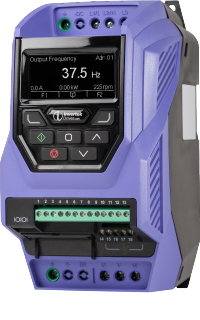

ODP-2-24010-3HF42-MN

Input Ratings Supply Voltage 380-480 V Input Phases 3 Supply Current Continuous 2.4 A Supply Fuse or MCB (Type B) 10 A Output Ratings Motor Output Rating 0.75 kW (1 HP) Output Voltage 0 – Supply Voltage Output Current 2.2 A Cable Information Max Supply Cable Size 8 mm² (0.01 sq in) Max Motor Cable Size 8 mm² (0.01 sq in) Max Motor Cable Length 100 m (328 ft) Factory Build Options EMC Filter Internal EMC Brake Transistor Internal Enclosure IP20 Display TFT Display PCB Coating Standard Drive Dimensionsi Size 2 Height 221 mm (8.7 in) Width 110 mm (4.33 in) Depth 185 mm (7.28 in) Weight 1.8 kg (3.97 lbs) Fixings 4 x M4 Packaged Dimensionsi Height 265 mm (10.43 in) Width 145 mm (5.71 in) Depth 230 mm (9.06 in) Weight 1.9 kg (4.19 lbs)
