Product Description

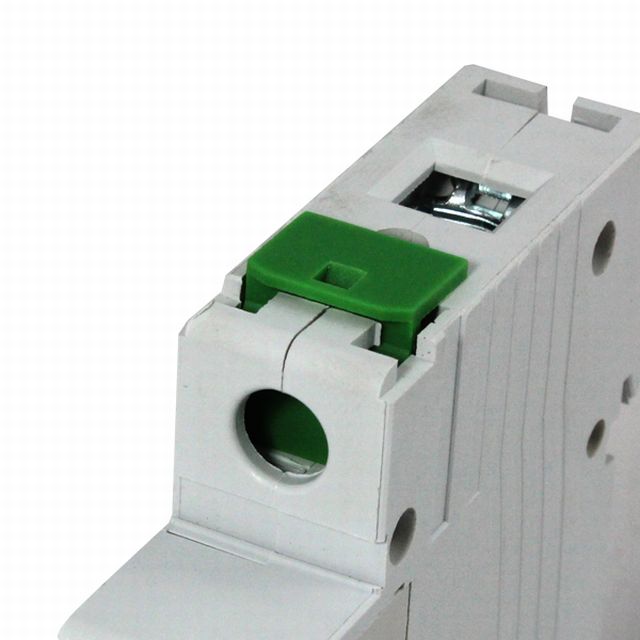

MCB terminal blanking cap
Type: Mini Circuit Breaker- Technical Info
- Specifications
- Also Purchased Products
The IMO Mini Circuit Breaker design incorporates a protective indicator and utilises a secured plastic window to facilitate identification labelling. It also offers a test point facility, and improved mechanism for extended life with an enhanced Din Rail fitting mechanism.
A full range of accessories is also available: Busbars, Auxiliary contacts, Locking device, etc.
Rated voltage:230V/400V AC, Max. 60VDC
Rated insulation voltage Ui:500V
In accordance with:EN60898, EN60947-2, UNE20317
Terminal capacity:1 to 25mm2 up to 25A; 25 to 35mm2 up to 63A
Breaking capacity as per IEC60898:6kA B curve 1 pole,10kA C & D curve 1-3 poles
Breaking capacity applying IEC60947-2:up to 15kA
Mounting:on Rail EN60715 (EN50022)
Protection degree:IP20
