Product Description

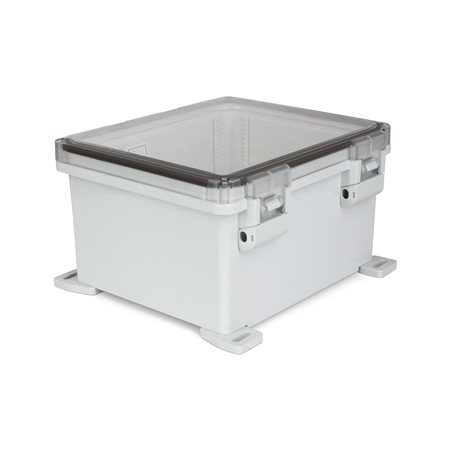

Cabinet wall installation PC Ensto PolyBox
Size 12.0 x 10.0 x 6.0 in, Polycarbonate Wall mount Enclosure, Hinged Nonmetal Snap Latch, Clear Cover
Material
| Gasket: | Polyurethane |
| Material selection: | Polycarbonate |
Certificates
| Standards: | UL 508A |
US specific
| Depth inch: | 7.27 in |
| Enviromental type: | 4X, 12, 13, 6P |
| Height inch: | 12.82 in |
| Inner depth inch: | 6.13 in |
| Operating temperature °F: | -40 ... 176 °F |
| Short term temperature range °F: | -40 ... 248 °F |
| Size inch: | 12.82 x 12.11 x 7.27 in |
| Weight pound: | 4.94 lb |
| Width inch: | 12.11 in |
Technical information
| Material: | Polycarbonate |
Ratings
| Degree of protection: | IP69 |
| Flammability rating: | UL 746C 5 inch flame test |
| Rated voltage: | 1000 ... 1500 V |
Dimensions
| Depth: | 185 mm |
| Height: | 326 mm |
| Inner depth: | 156 mm |
| Net Weight: | 2.24 kg |
| Size: | 326 x 308 x 185 mm |
| Volume : | 18.58 cm³ |
| Weight: | 2.24 kg |
| Width: | 308 mm |
Mechanical
| Impact strength: | IK10 +40Cº / -35Cº |
Temperatures
| Operating temperature: | -40 ... 80 °C |
| Short term temperature range: | -40 ... 120 °C |
Type: Enclosure
Size: 12x10x6
Material: Polycarbonate
- Technical Info
No technical information is available for this product. If you have any questions on this product, please contact us for expert assistance.
| Model Number | Short Description | Sale Price | QTY | Stock Status | Lead Time | Specs | |
|---|---|---|---|---|---|---|---|
