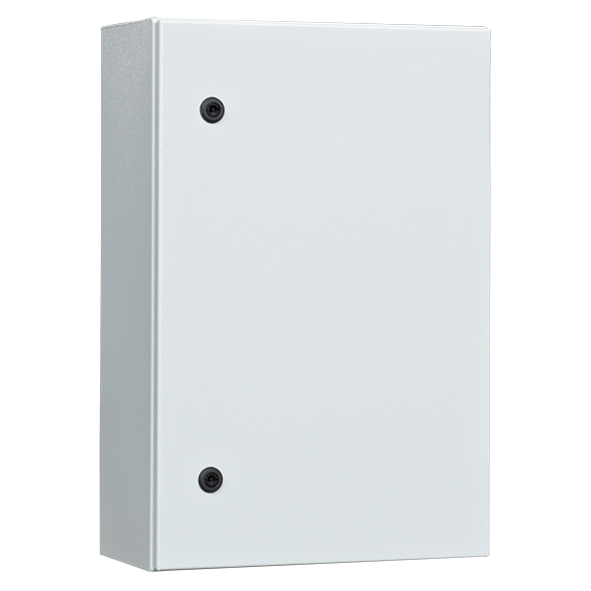

3331-4060-30-17 Haewa Wallmount Enclosure H600 x W400 x D300

Model Number: 3331-4060-30-17
Stock status:
Lead Time: Available Now

Our Price: $272.00

Product Description

  • Order No.: 3331-4060-30-17
  • Type: with mounting plate, single door design
  • width: 400 mm / 15.75 inch
  • height: 600 mm / 23.62 inch
  • depth: 300 mm / 11.81 inch
  • Weight: 17.08 kg / 37.65 lbs
  • included mounting plate: 0331-4060-00-13
  • Number of cable entry plates: 1
  • Size of cable entry plate: size 1
  • Sheet metal thickness body: 1.35 mm / 0.05 inch
  • Metal thickness door: 1.5 mm / 0.06 inch
  • Maximum installation: depth of 16 or 24 mm with edged mounting panel (20 mm)
  • Protective ground connection: according to DIN EN 61439-1
  • Surface finish: Powder coated RAL 7035, texture finish
  • Lock: plastic housing, locking bolt: GDZn black, latch: galvanized
  • Moungting panel: sendzimir galvanised, 2 mm, from enclosure width/height 600x600 mm 2.5 mm, from a width/height of 801 mm edged 20 mm
  • Approvals: cUL; GL
  • Protection type: IP66, Typ 1, 2, 5, 12, 4; Optional Typ 3, 3R
  • Material: Sheet steel
Type: Enclosure
Size: W16XH24XD12
Material: Metal
